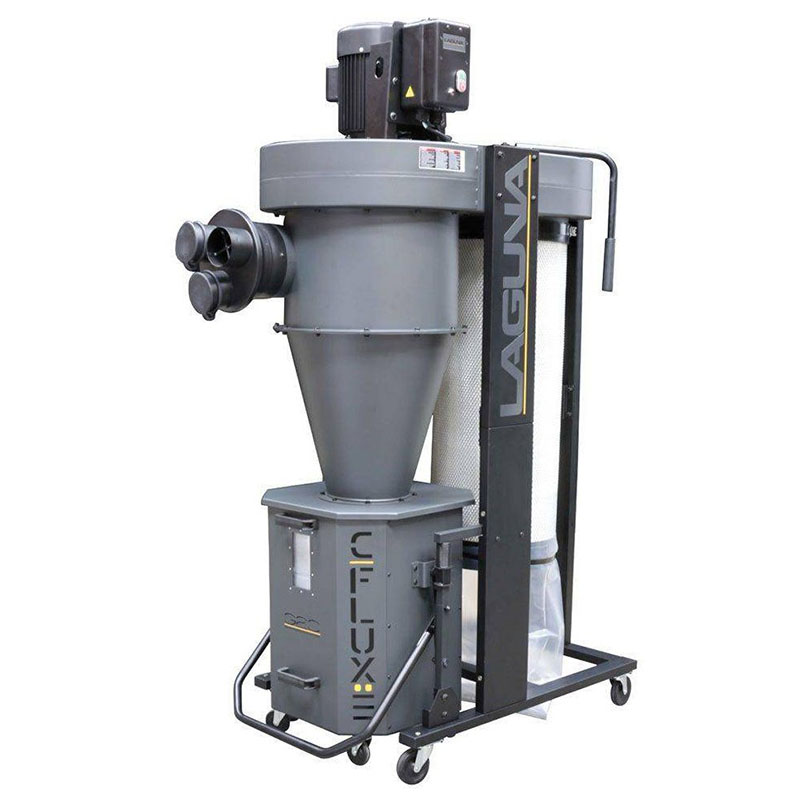

Laguna C|Flux: 3 Cyclone Dust Collectors

The C|Flux: 3 Cyclone Dust Collector sets a new standard for cyclone dust collectors. The horizontal chute is designed to maximize airflow while improving CFM. All shapes and dimensions have been reevaluated to optimize performance.

The C|Flux:3 features a 1 micron canister, providing 99.97% filtration efficiency for particles between the sizes of 0.2 to 2 micron, highlighted by 109 sq/ft. of polyester spun bond pleated filter to ensure maximum airflow. 270° manual clean included.

SKU AD-LAGCFLUX3-CYDC Category Tags , ,

Share Now

Description

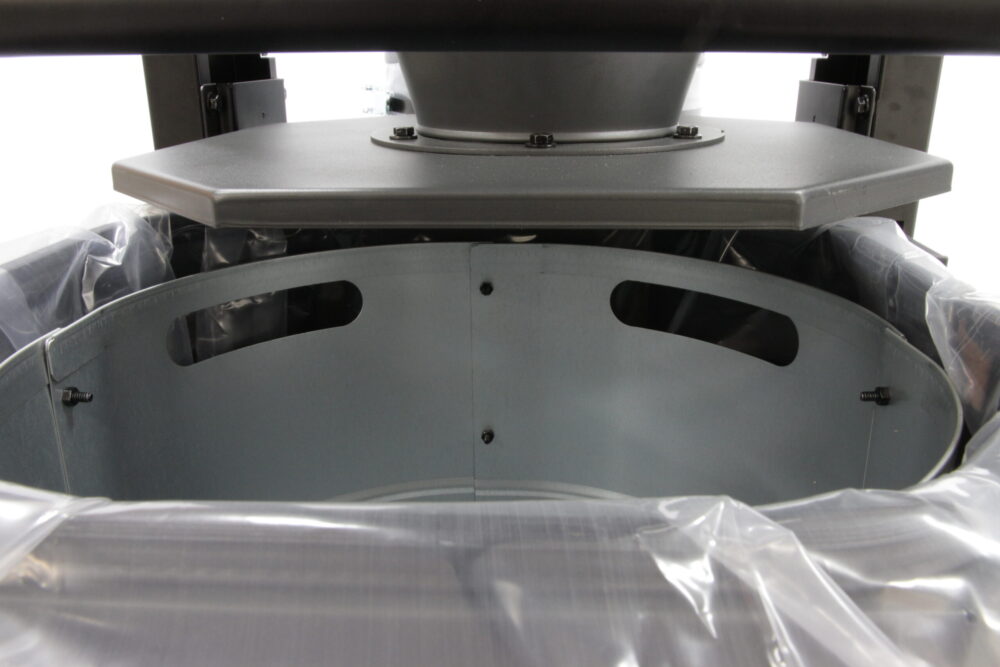

The C|Flux series can be equipped with an optional auto-clean kit either at time of purchase or as an add-on later. The auto clean kit includes a smart sensor that detects a rise in static pressure indicating the filter is getting clogged and automatically activates the cleaning procedure. The lift system quickly moves the drum off the floor and seals against the drum lid, avoiding the need for a flex hose. This design allows for much easier portability.

Features

  • UL/CSA Approved
  • 3-year Warranty
  • Featured 1 micron bag can collect up to 99% of particles as small as 5 microns and 90% of particles as small as 1 micron in size. With proper usage, you will have a clean shop.
  • 1-Hose Connection Diameter (in.): 4″
  • Inlet Diameters: 8″ by 4″ 3 Ports
  • Max Static Pressure: 11.2″ of Water
  • Switch Type: Radio Frequency Remote Switch – Black Box
  • Filtration Efficiency: 0.2 – 2 Micron at 99.97%
  • 4″ Caster Wheels for Simple Portability
  • Balanced To: ISO 1940

Additional information

Power

220V/1/60Hz (22 Amps)

Motor

3.0 HP TEFC 3450 RPM

Impeller

15.5″ Steel, Radical Fin

Airflow

Up to 1624 CFM

Drum Capacity

46 gallons

Width

27"

Height

79"

Depth

46"

Weight

385 lbs

Noise

88 dBA
