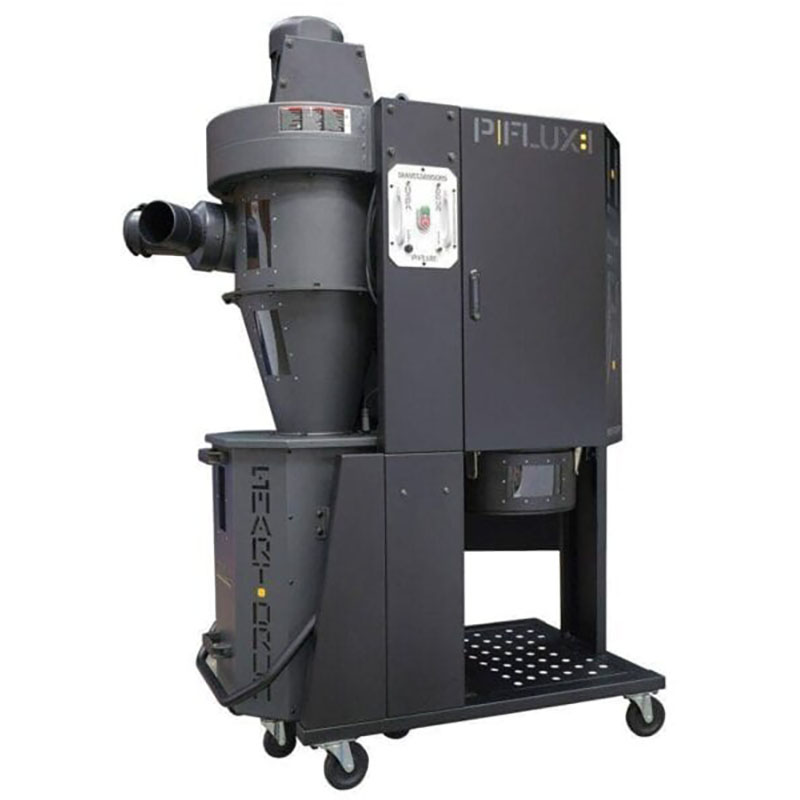

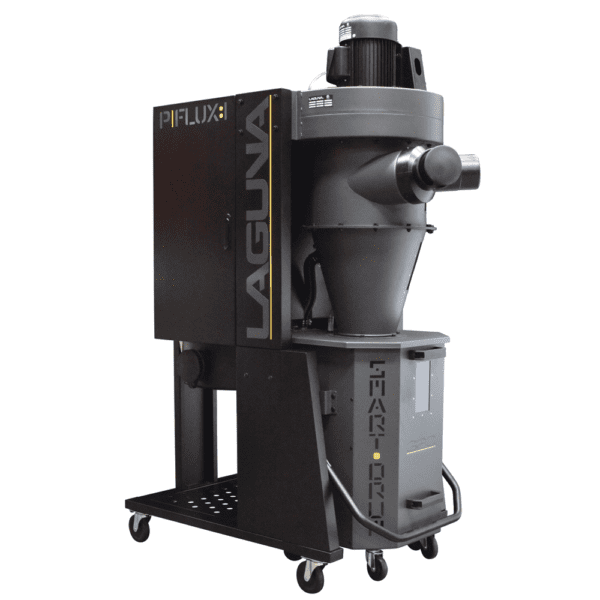

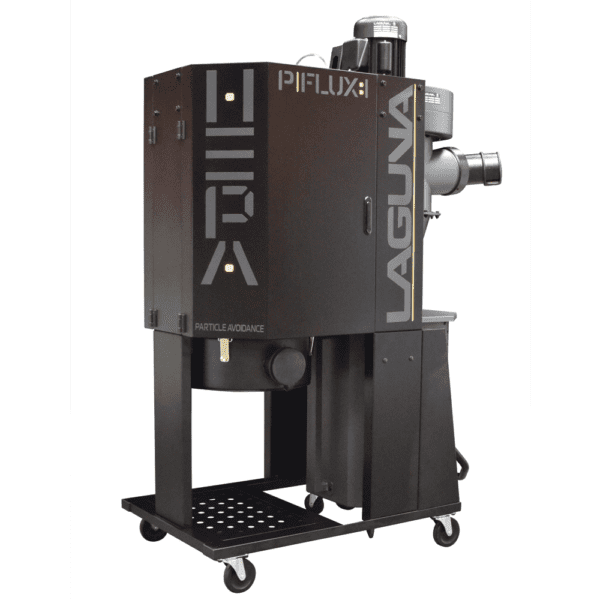

Laguna P|Flux: 1 Cyclone Dust Collectors

The P|Flux: 1 Cyclone Dust Collector sets a new standard for cyclone dust collectors. The horizontal chute is designed to maximize airflow while improving CFM.

Product shape and dimensions have been carefully designed to ensure optimal performance, and the 4″ caster wheels allow for easy portability.

SKU AD-LAGPFLUX1-CYDC Category Tags , ,

Share Now


The P|Flux series is smartly designed for ease-of-use and efficiency. When lifting the drum into position, a connector located on the back of drum automatically connects to a pipe in the cyclone, creating low pressure at the bottom of the drum. This is designed to ensure plastic bags will not be sucked up into the cone during operation. If you chose to use the P|Flux without a bag, you can simply shut off the system using a valve, offering you speed and flexibility.


  • UL/CSA Approved
  • 3-year Warranty
  • Featured HEPA cannister can collect at least 99.2% of particles as small as 0.4 microns. With proper usage, you will have a very clean shop.
  • 1-Hose Connection Diameter (in.): 4″
  • Inlet Diameters: 6″ manifold 4″ x 2 Ports
  • Max Static Pressure: 10.1″ of Water
  • Switch Type: Sunken Radio Frequency Remote Switch With LED Full Drum Detection & LED HEPA Dirty Detection
  • Filtration Efficiency: 0.4 Micron at 99.2%
  • 4″ Caster Wheels for Simple Portability
  • Control Panel: Embedded Anodized Aluminum w/ Magnetic On/Off
  • Balanced To: ISO 1940

Additional information


110V/1/60Hz (18.8 Amps)


1.5 HP TEFC 3450 RPM


13.5″ Steel, Radical Fin


Up to 900 CFM

Drum Capacity

32 gallons


24 1/4"


68 1/2"


45 1/2"


331 lbs


70 dBA
