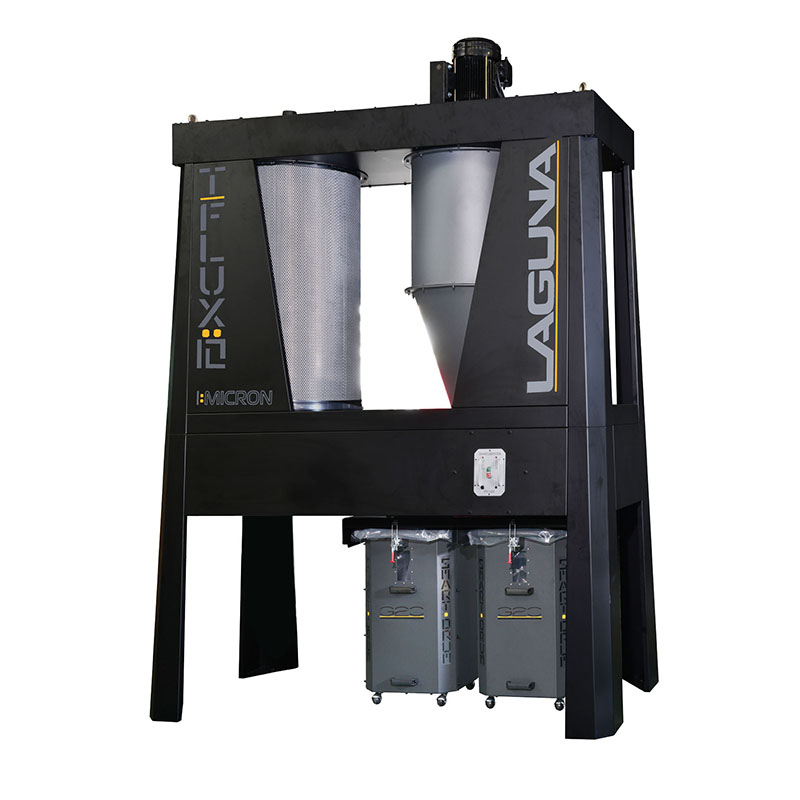

Laguna T|Flux: 10 Cyclone Dust Collectors

The T|Flux: 10 Cyclone Dust Collector is a central cyclone dust collection system ideal for use with multiple workstations and designed for heavy-duty industrial use.

The T|Flux 10 cyclones are equipped with a 12″ port that splits into 3 x 4″, allowing you to run a large diameter pipe system throughout your shop with drops to the individual stations.

SKU AD-LAGTFLUX10-CYDC Category Tags , ,

Share Now

Description

The T|Flux cyclones are equipped with a 12″ port that splits into 3 x 4″, allowing you to run a large diameter pipe system throughout your shop with drops to the individual stations.

Features

  • UL/CSA Approved
  • 3-year Warranty
  • Featured black 1 micron canister can collect at least 99.97% of particles as small as 1.2-2 microns. With proper usage, you will have a clean shop.
  • Inlet Diameter: 12″
  • Max Static Pressure: 16.8″ of Water
  • Central dust collection unit designed for multiple work-stations
  • Sunken Radio Frequency Remote Switch with LED alerts when drum is full and/or filter is dirty
  • Easy drum disconnect system
  • High-frequency, Hand-held remote control
  • Balanced To: ISO 1940

Additional information

Power

220V/1/60Hz (30 Amps)

Motor

10.0 HP TEFC 3450 RPM

Impeller

18.5″ Steel, Radical Fin

Airflow

Up to 4030 CFM

Drum Capacity

54 gallons x 2 (108 gallons)

Width

48.5"

Height

131 1/2"

Depth

100"

Weight

1301 lbs

Noise

81 dBA

Filter Surface Area

207ft²
